ASTM F 3125 Bolts
We are specialist supplying for High tensile bolts and nuts in 8.8, 10.9, 12.9 grade for power, energy, renewable sector like wind power and solar energy, and also in stainless steel bolts and nuts in SS 304, SS 316, SS 316L and 316S31 grade for the marine.
Our main products:
Heavy Hex Bolt (ASTM A325/A325M type1 and type3, ASTM A490/A490M type1 and type3, EN14399-3, EN14399-4, JIS B1186(F10T), GB1228, AS1252, IS3757)
Tension Control Bolt(ASTM F1852, F2280, EN14399-10, S10T, GB3632)
Welding Stud (ISO13918, AWSD1.1 / 1.5)
Hex Bolt(DIN933 / DIN931, ISO4014 / 4017, EN15048, SAE A307, AS1110, JIS B1180 grade 4.8,8.8,10.9)
Foundation Anchor Bolt ("L","J","U","I" type with 4.8, 8.8 and 10.9 grade)
Thread Rod including Stud Bolt (DIN975 / 976, A193 B7)

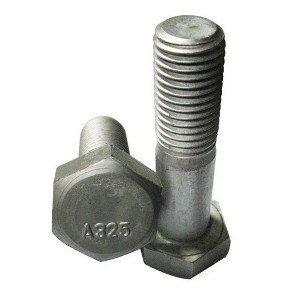

ASTM F 3125 Bolts
[ AREAS-964 ]High Strength Structural Bolt, Steel and Alloy Steel
This specification covers the chemical, physical and mechanical requirements for structural bolts manufactured from steel and alloy steel,
ASTM F3125 Marking Requirements
Marking | 120ksi, Type 1 | 120ksi, Type 3 | 150ksi, Type 1 | 150ksi, Type 3 |
Bolt | A325 | A325 | A490 | A490 |
Nut | A563 DH | A563 DH3 | A563 DH | A563 DH3 |
- Supplementary requirements S1 and S2 have special marking requirements. |
F3125 Bolt Types
Grade | Min Strength, Tensile | Type | Style |
A325 | 120ksi min | 1 or 3 | Heavy Hex Head |
A325M | 830MPa min | 1 or 3 | Heavy Hex Head |
F1852 | 120ksi min | 1 or 3 | Twist-Off/TC |
A490 | 150-173ksi | 1 or 3 | Heavy Hex Head |
A490M | 1040MPa | 1 or 3 | Heavy Hex Head |
F2280 | 150ksi | 1 or 3 | Twist-Off/TC |
a ) Type 1 – 120ksi - carbon, carbon boron, alloy, or alloy boron steel b ) Type 1 – 150ksi – alloy or alloy boron steel c ) Type 3 – weathering Steel |
