Earth Boss

Company operates in the areas of system integration, consultancy, design_ installation and transferring into operation for the oil and gas industry. Furthermore, we are importing directly and supplying many products for automation control, gas compressors, hydraulic and accessories for alternative synchronization.

Accessories

Earth Boss

[ AREAS-930 ]

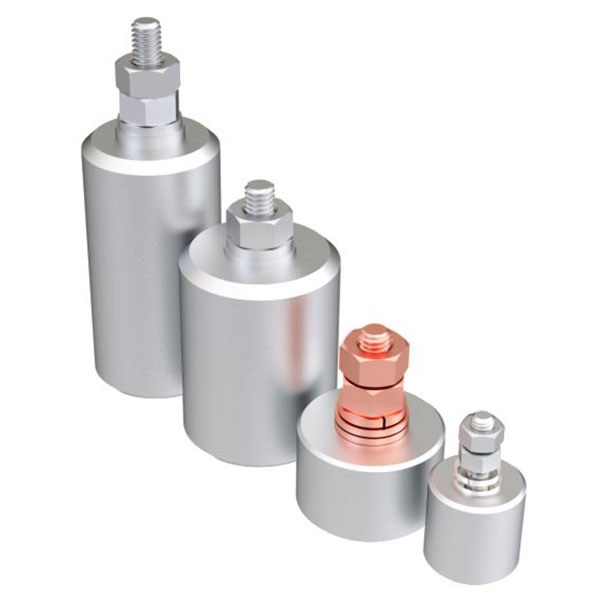

The complete range of Earth Bosses that are designed to provide an earth connection point on a steel structure – the boss is welded onto steel vessels, tanks and other structures.

The earth bosses are manufactured from mild steel with stainless steel fittings – the earth boss size, material type and design configuration can be designed to accept onshore or offshore project applications.

EARTH BOSSES

SELECTION TABLE

Earth bosses can be produced as standard in a range of dimensions and also customised to client specification and requirement – standard thread size is M10. Mild steel and stainless steel material available.

AN Wallis Part Number	Earth Boss Dimensions	Thread Size	Unit Weight	Pack Quantity
EPB 5050	50mm x 50mm	M10	0.77kg	1
EPB 5040	50mm x 40mm	M10	0.62kg	1
EPB 5030	50mm x 30mm	M10	0.47kg	1
EPB 4040	40mm x 40mm	M10	0.47kg	1
EPB 4030	40mm x 30mm	M10	0.35kg	1
