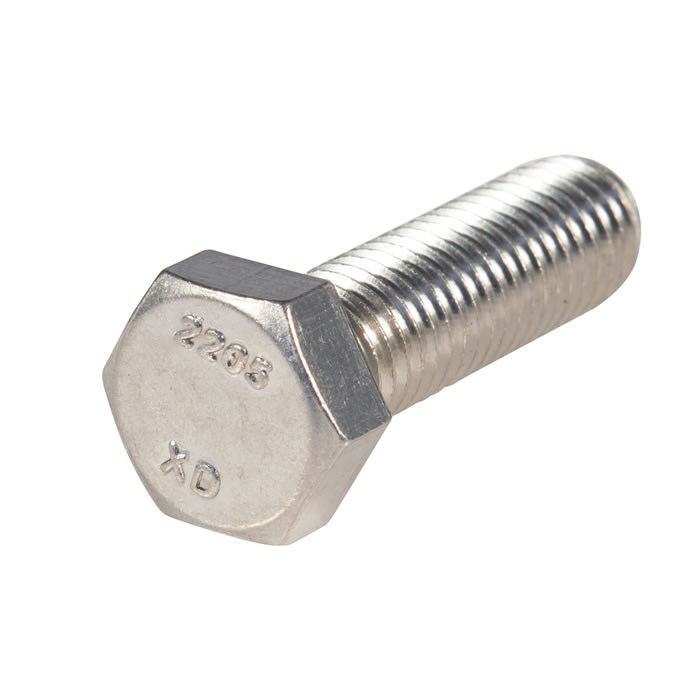

Duplex 2205 Bolt
Duplex 2205 Bolt
[ AREAS-818 ]
| Duplex fastener | |||
| Type | Stud Bolt | Threaded Rod | Hex Socket Cap Screw |
| Hex Nut | U-Bolt | Spring Washer | |
| Pain Washer | Hex Bolt （full thread, partial thread) | ||
| Size | Stud Bolt | DIN: M6~M100 | ASME: 1/4"~5" |
| Hex Bolt | DIN: M6~M64 | ASME: 1/2"~2 1/2" | |
| Finish | Cold galvanizing, Hot-dip Galvanizing, PTFE, Zinc Nickel, Black coating, Plain | ||
| Producing Standard | ASME | ASME B18.2.1 | Hex Bolts |
| ASME B18.2.2 | Hex Nuts | ||
| ASME B18.22.1 | Plain Washers | ||
| DIN | DIN931 | Hex Bolt with partial thread | |
| DIN 933 | Hex Bolt with full thread | ||
| DIN 912 | Hex Socket Cap Screw | ||
| DIN 934 | Hex Nut | ||
| DIN 125 | Plain Washer | ||
| DIN127 | Spring Washer | ||
| DIN 975 | Threaded Rods | ||
| DIN 976 | Stud Bolts | ||
| DN 3570 | U-Bolt | ||
| Material Grade | Stainless Steel | 304/304L, 316/316L, 316Ti, 317/317L, 321, 347/347H, 310, 309, A453 660C,660D, S31254 /254SMO, 904L /1.4539 /N08904, N08367, N08926 / 1.4529 | |
| Duplex Steel | 2205 /S31803, S32750/2507, S32760 | ||
| Nickel Alloy Steel | UNS N02200/Ni 200, UNS N02201 /Ni201, UNS N04400/ Monel 400, UNS N05500/ Monel K500 , UNS N06600/ Inconel 600, UNS N06601/ Inconel 601, UNS N06625/ Inconel 625, UNS N08825/ Incoloy 825, UNS N08800 /Incoloy 800, UNS N08810 /Incoloy 800H , UNS N08811 /Incoloy 800HT, UNS N08020 /Alloy 20, UNS N06002 /Hastelloy X, UNS N06022/ Hastelloy C22, UNS N06200/C2000, UNS N10276/ Hastelloy C276, UNS N10665 /Hastelloy B2, UNS N10675/Hastelloy B3, UNS N08020/ Alloy 20, UNS N08031/ Alloy 31 | ||
| Carbon Steel | Grade 4.8, 5.8, 6.8, 8.8, 10.8, 12.9 | ||
| Alloy Steel | A193 B7, A194 2H, A320 L7, L7M | ||
