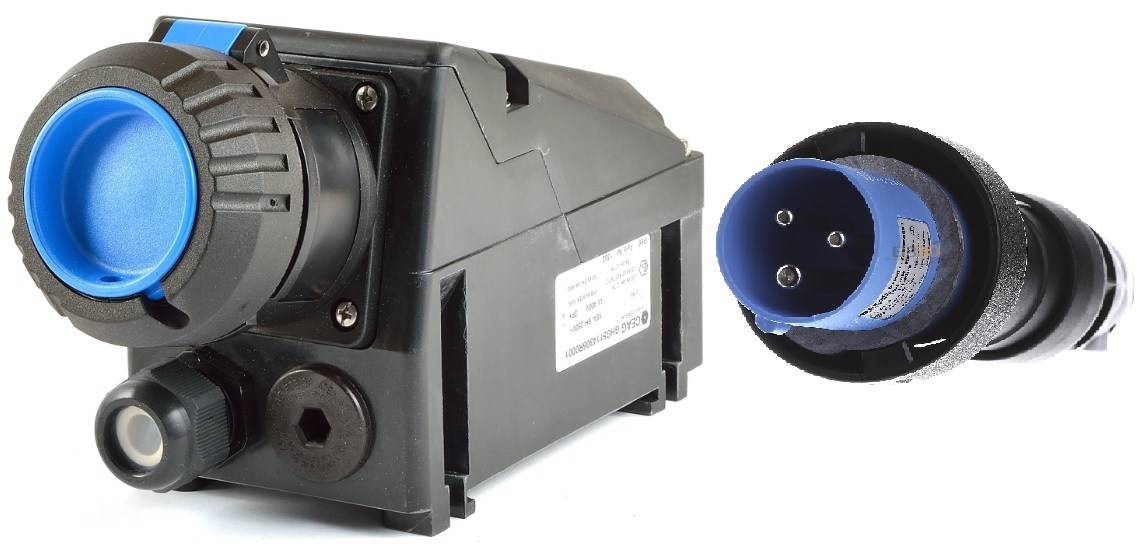

EX-PLUGS AND RECEPTACLES ACC. TO IEC 60309-1/2 16A

[ AREAS-880 ]

Specifications Download 2.1.10-1.55_EN CEAG GHG511.pdf

EX-PLUGS AND RECEPTACLES ACC. TO IEC 60309-1/2 16A
Marking accd. to 2014/34/EU	Wall socket, plug and coupler: II 2 G Ex ed IIC T6 / D II 2 D Ex tD A21 IP66 T80 °C Flange socket: II 2 G Ex db eb IIC/IIB Gb / D II 2 D Ex tb IIIC Db
EC-Type Examination Certificate	Wall socket, plug and coupler: PTB 99 ATEX 1039 / Flange socket: BVS 15 ATEX E 101 U
IECEx Certificate of Conformity	Wall socket, plug and coupler: IECEx BKI 04.0002 / Flange socket: IECEx BVS 15.0088U
Marking accd. to IECEx	Wall socket, plug and coupler: IEx ed [ia] IIC T6/T5 / Flange socket: Ex db eb IIC/IIB Gb / Ex tb IIIC Db
Permissible ambient temperature	-20°C up to +40°C 1)
Rated voltage	up to 400 V, (3-pole) / 690 V, (4-pole) / 500 V, (5-pole) AC
Rated current	16 A
Frequency	up to 400 Hz
Rated making / Rated breaking capacity AC-3 accd. EN 60947-3	Ue 250 V / Ie 16 A (3-pole) Ue 690 V / Ie 16 A (4-pole) Ue 500 V / Ie 16 A (5-pole)
External back-up fuse, max.	without therm. protection: 16 A with therm. protection: 35 A gG (rated current 16 A set to)
Protection class	I
Degree of protection accd. to EN 60529	IP66
